Lower Cable Guide Tubes, Removing and Installing

Lower Cable Guide Tubes, Removing And Installing

- Remove rear lid trim
- Remove rear spoiler drive.







- Remove bolts - 1 - of bracket - 2 - for lower guide tubes - 3 -. Tightening torque: Bolts 1- = 8 Nm

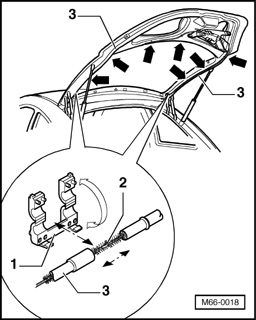

- Open clips - 1 - at left and right.

NOTE: Replace damaged clips - 1 - when installing.

- Unclip lower guide tube - 3 - on left and right from rear lid - arrows - and pull off from cable - 2 -.
