Splash Guard: Service and Repair

Noise Insulation Panel, Assembly Overview

NOTE: Depending on vehicle equipment, slight changes are possible.

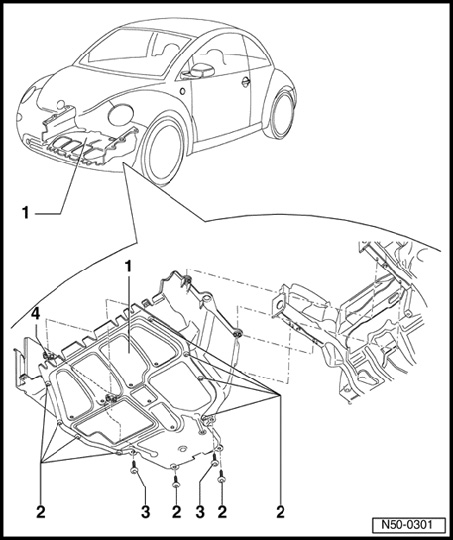

Vehicles with gasoline engine







1 - Noise insulation
- For gasoline engines
- Bolted and connected in front area of lock carrier
- Lower part bolted to side parts

2 - Bolt
- 2x

3 - Bolt
- Qty. 10

4 - Clamping washer
- 4x

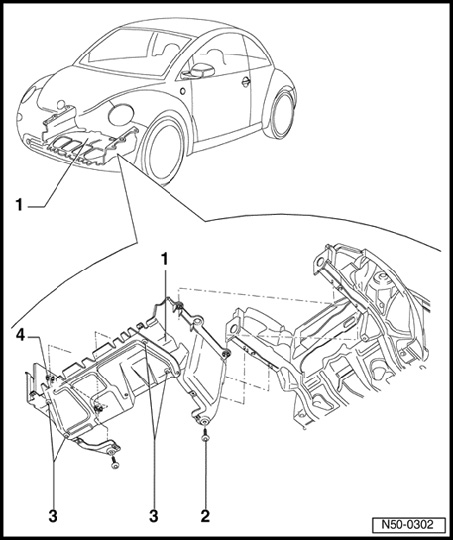

Vehicles with Diesel engine







1 - Noise insulation
- For Diesel engines
- Bolted and connected in front area of lock carrier

2 - Bolt
- 2x

3 - Bolt
- 4x

4 - Clamping washer
- 4x

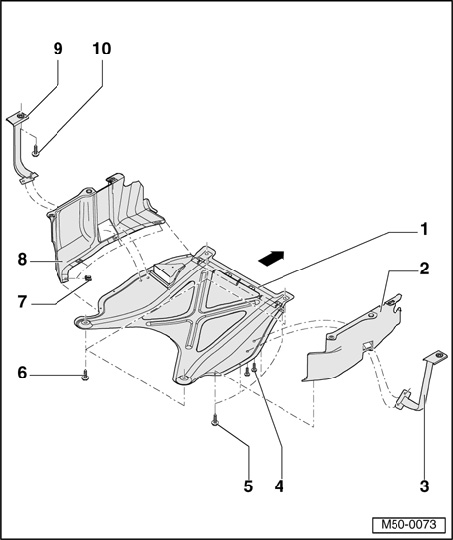

Vehicles with gasoline engine (convertible)

NOTE: - Arrow - points in direction of travel.







1 - Noise insulation
- Bolted and connected in front area of lock carrier

2 - V - belt guard
3 - Right support
4 - Bolt
- 4x

5 - Bolt
- 8x

6 - Bolt
- 4x

7 - Speed nut
- 8x

8 - Engine screening
9 - Left support
10 - Bolt
- 2x
