Sound Proofing / Insulation: Locations

Noise insulation, assembly overview

NOTE: Slight variations are possible depending on model equipment

Models with gas engine





1. Noise insulation
For gasoline engines
Bolted and forward edge is inserted into lock carrier
Lower part is screwed to side panel

2. Bolt
Qty. 2

3. Bolt
Qty. 10

4. Lock washer
Qty 4

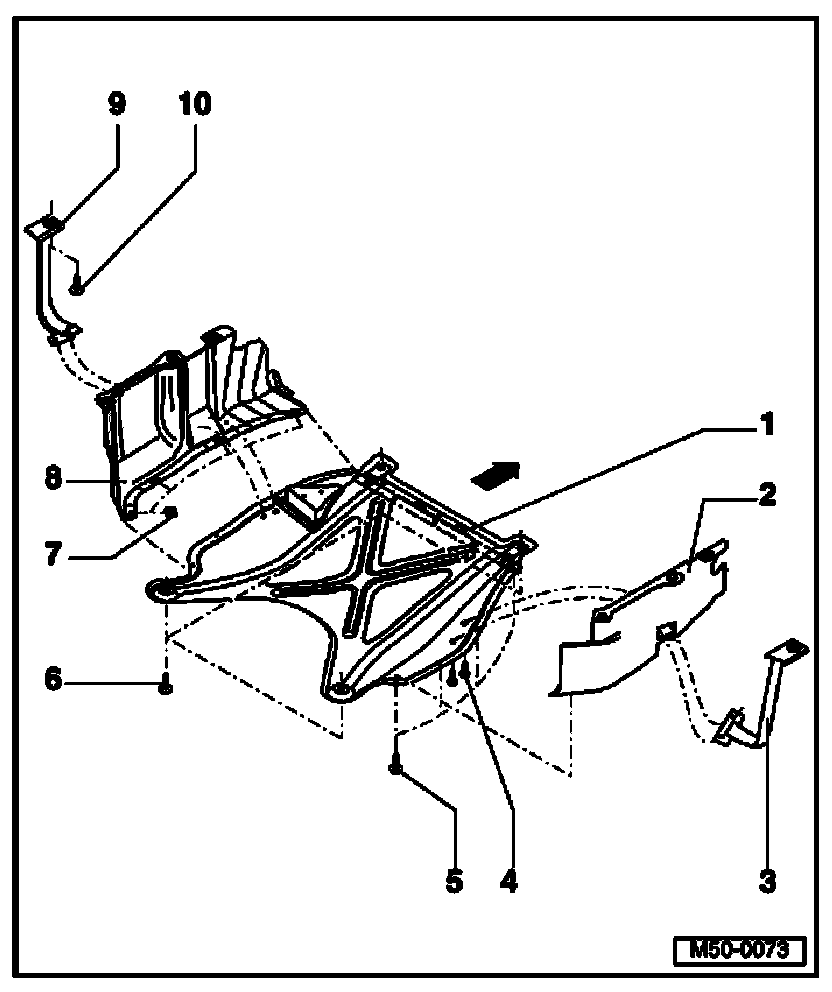

Models with a gasoline engine (Convertible)






Note: - Arrow - indicates direction of travel (forward).

1. Noise insulation
Bolted and forward edge is inserted into lock carrier

2. V-belt guard
3. Right support

4. Bolt
Qty 4

5. Bolt
Qty 8

6. Bolt
Qty 4

7. Speed nut
Qty 8

8. Engine screening
9. Left support

10. Bolt
Qty. 2
