Power Trunk / Liftgate Lock Switch: Service and Repair

Switch for remote/fuel tank door and switch for remote unlock, rear lid, removing and installing

The switches for remote/fuel tank door and remote unlock rear trunk lid, cannot be removed separately. The complete switch unit must be replaced.

Removing
- Remove door trim.
- Disconnect electrical connection.

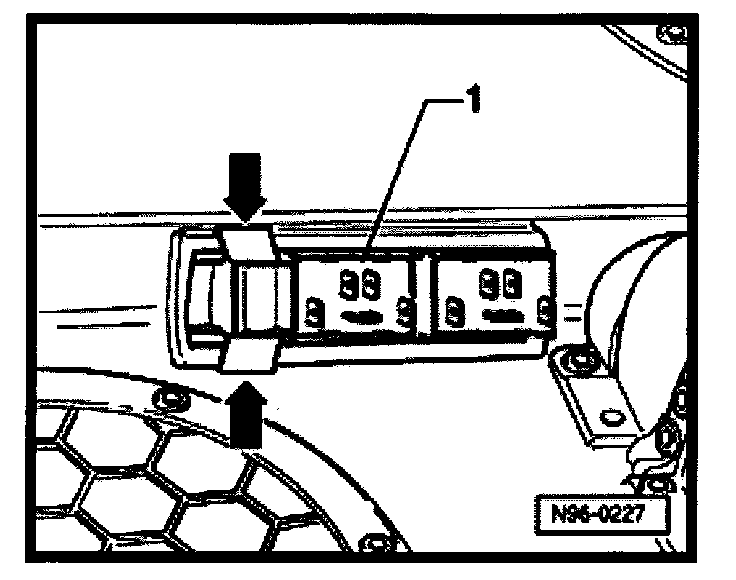

- Release switch housing -1- by pressing sideways on locking tabs (arrows) and remove from door trim.

Installing
- Insert switch -1- into door trim and engage.
- Connect electrical connection.
- Install door trim.
