Seatbench, Removing and Installing (Convertible)

Seatbench, Removing And Installing (convertible)

Removing

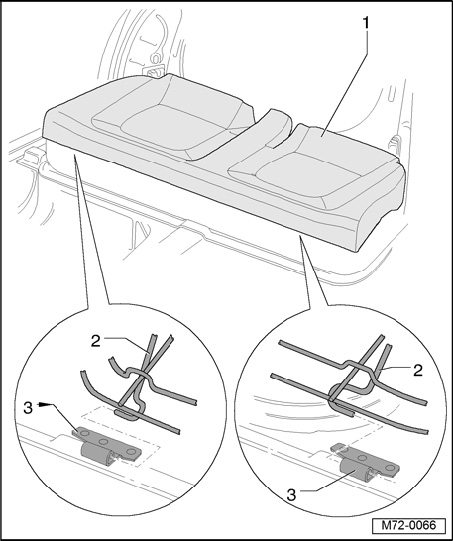

- Raise seatbench at front and pull forward.







- Press linkage - 2 - out of brackets - 3 -.







Installing







- Guide linkage - 2 - into brackets - 3 -, fold seatbench - 1 - toward rear and press down at front.
