Folding Arm Rest With Load-Through Hatch, Removing and Installing (Convertible)

Folding Arm Rest With Load-through Hatch, Removing And Installing (Convertible)

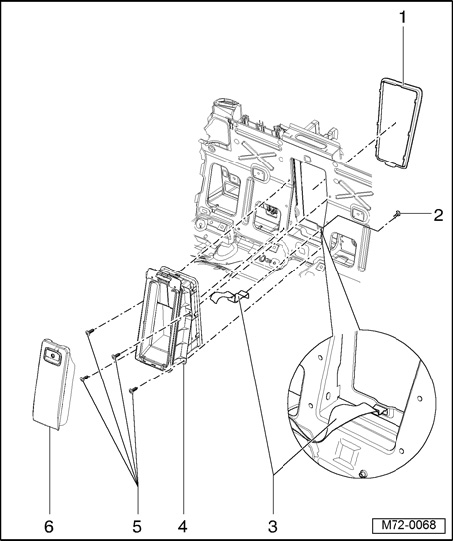

Removing
- Remove backrest.







- Unclip cover - 1 - from luggage compartment.







- Remove bolt - 2 - (20 Nm, vehicles with skisack only).
- Remove bolts - 5 - (4x, 10 Nm).
- Remove folding armrest with load-through hatch.

Installing
- Installation is performed in the reverse order of removal.
