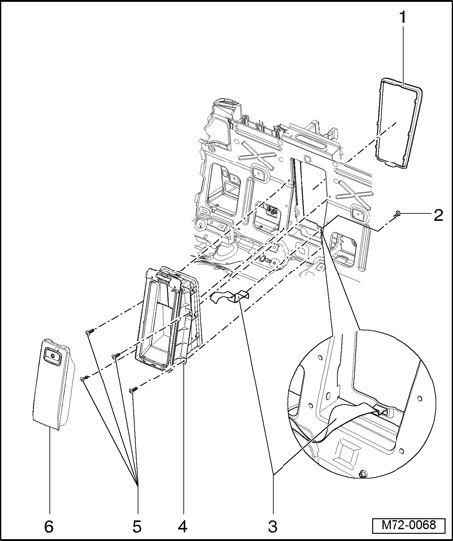

Folding Arm Rest With Load-Through Hatch - Assembly Overview (Convertible)

Folding Arm Rest With Load-through Hatch - Assembly Overview (Convertible)







1 - Cover
2 - Bolt
- 20 Nm
- Only for vehicles with skisack

3 - Skisack tether
- Only for vehicles with skisack

4 - Load-through hatch
5 - Bolt
- 4x
- 10 Nm

6 - Lid
