Rear Seat Cover and Cushion For Seatbench - Assembly Overview (Convertible)



Rear Seat Cover And Cushion For Seatbench - Assembly Overview (Convertible)

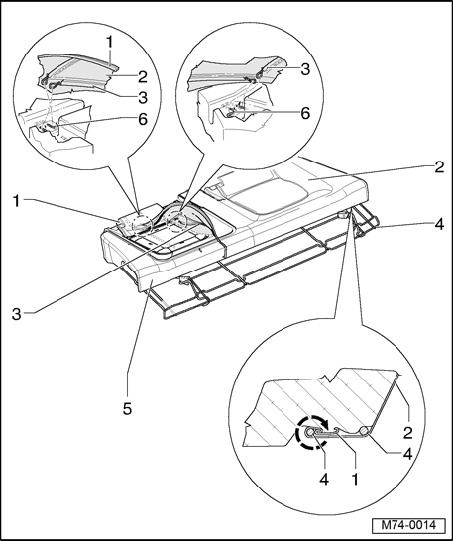

Assembly overview







1 - Beading
2 - Cover
3 - Cushion wire
4 - Wire frame
5 - Cushion
6 - Retaining wire
