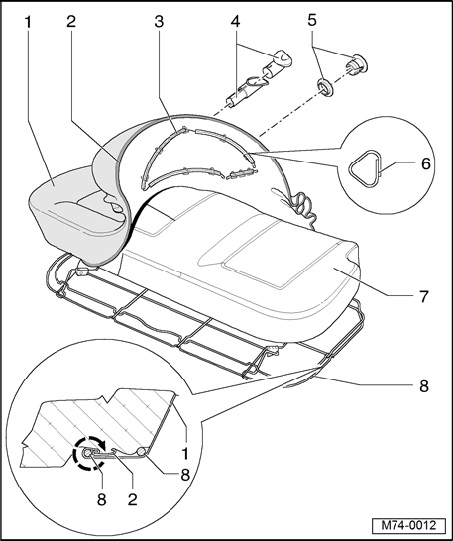

Rear Seat Cover and Cushion For Seatbench - Assembly Overview

Rear Seat Cover And Cushion For Seatbench - Assembly Overview

NOTE: Removal and installation of seat covers on one and two piece seatbench is in principle identical. Following description is mostly for one piece seatbench.







1 - Cover
2 - Beading
3 - Cushion wire
4 - Guide
- For one piece seatbench
- 4x
- For headrests when seatbench is folded forward

5 - Guide
- For two piece seatbench
- 4x
- For headrests when seatbench is folded forward

6 - Cushion clamp
- 20x

7 - Cushion
8 - Wire frame
