Rear Seat Cover and Cushion For Left Backrest - Assembly Overview

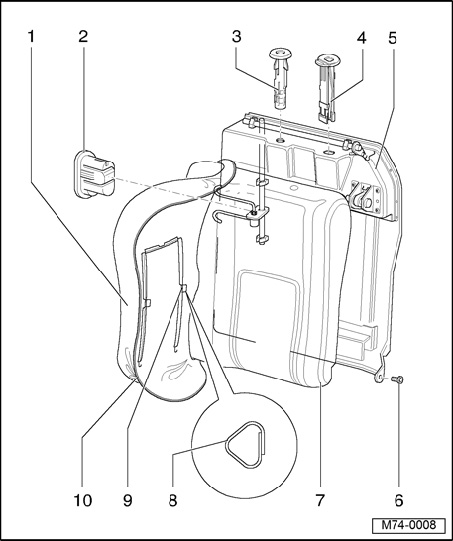

Rear Seat Cover And Cushion For Left Backrest - Assembly Overview







1 - Cover
2 - Button
- Must be removed together with cover and upholstery

3 - Guide
- For headrest
- Without press button

4 - Guide
- For headrest
- With press button

5 - Rear panel
6 - Pivot pin
7 - Cushion
8 - Cushion clamp
- 5x

9 - Cushion wire
10 - Beading
