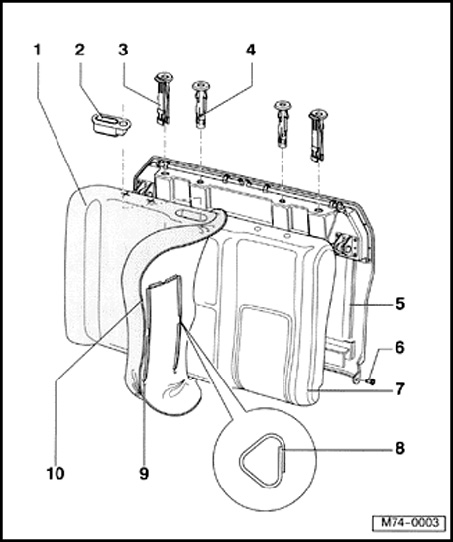

Rear Seat Cover and Cushion For Backrest (One Piece or Right-Hand Side) - Assembly Overview

Rear Seat Cover And Cushion For Backrest (one Piece Or Right-hand Side) - Assembly Overview

NOTE: Removal and installation of seat covers on one piece or right-hand side backrest is in principle identical. Following description is for one piece backrest.







1 - Cover
2 - Button
3 - Guide
- For headrest
- With press button

4 - Guide
- For headrest
- Without press button

5 - Rear panel
6 - Pivot pin
7 - Cushion
8 - Cushion clamp
- 14x

9 - Cushion wire
10 - Beading
