Cover and Cushion For Backrest (One Piece or Right-Hand Side), Removing and Installing

Cover And Cushion For Backrest (One Piece Or Right-hand Side), Removing And Installing

Removing
- Remove headrests.







- Press down backrest cushion below guide - 2 - and disengage retaining tab using screwdriver or drift - 1 -.
- Remove headrest guide - 2 -.

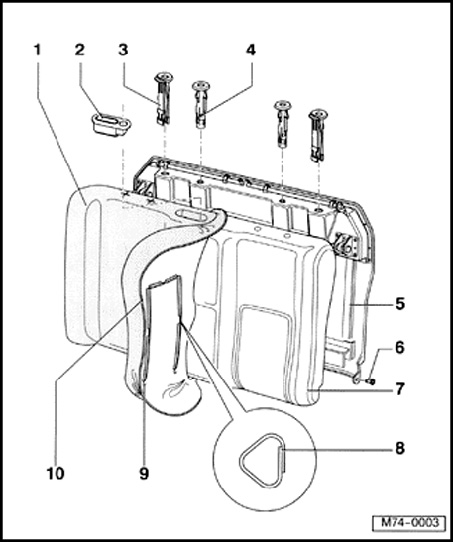

- Remove clamping strip - 2 - from rear panel and fold out rear part - 1 - of cover.
- Remove bolts for net mounting - 3 - (Mexico).







- Remove pivot pins - 1 - on left and right.







- Release beading - 10 - of cover - 1 - from rear panel - 5 -.







- Remove cover - 1 - and cushion - 7 - from rear panel - 5 -.
- Cut through cushion clamps - 8 - (14x).
- Remove cover - 1 - from cushion - 7 -.

Installing
- Installation is performed in the reverse order of removal.

Use new cushion clamps when reinstalling.
