Lumbar Support, Removing and Installing

Lumbar Support, Removing And Installing 05.03 -->

Removing
- Remove seat.
- Remove backrest.
- Remove backrest cover 05.03 -->.
- Remove backrest cushion.

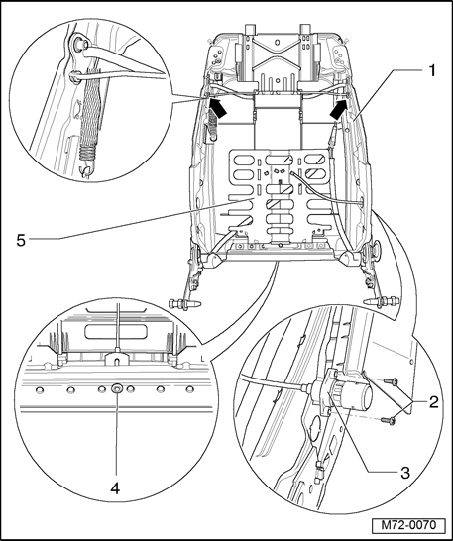

- Remove bolts - 2 - and remove adjustment device - 3 - from seat backrest - 1 -.
- Drill off pop rivet - 4 -.
- Unclip lumbar support - 5 - from seat backrest - arrows -.

Installing
- Installation is performed in the reverse order of removal.
