Backrest Release Cable, Removing and Installing

Backrest Release Cable, Removing And Installing 05.03 -->

NOTE: Removal and installation is described for right side of vehicle. The same instructions apply for removal and installation for the left-hand side.

Removing
- Remove seat.
- Remove backrest.
- Remove backrest cover 05.03 -->.
- Remove backrest cushion.

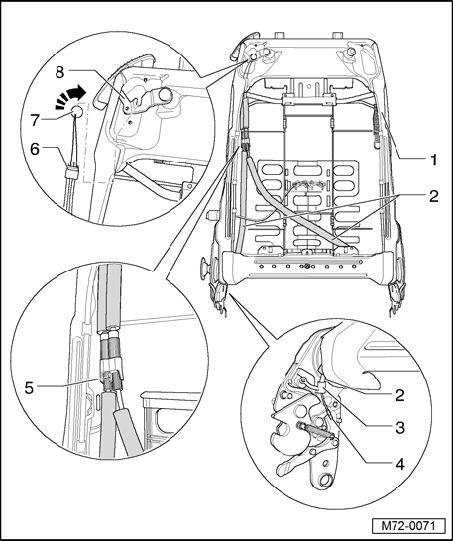

- Loosen cable - 5 -.







- Unhook cable hook - 4 - and remove cable - 2 - from guide - 3 -.
- Turn cable ball - 7 - 90° and remove from operating lever - 8 -.
- Unclip clip - 6 - and remove cable - 2 - from backrest frame - 1 -.

Installing
- Installation is performed in the reverse order of removal.
