Backrest Frame - Assembly Overview

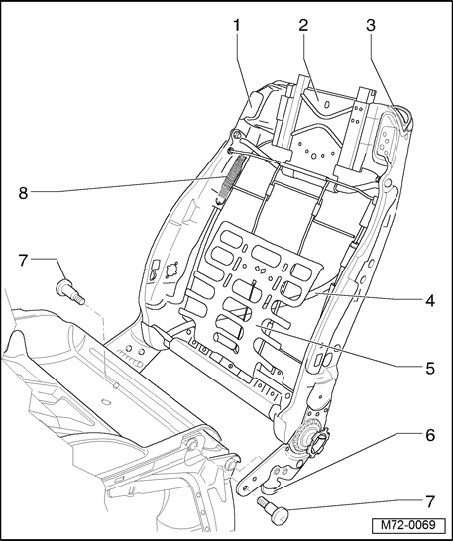

Backrest Frame - Assembly Overview 05.03 -->







1 - Backrest frame
2 - Active headrest guide
3 - Actuating lever
4 - Backrest release cable
5 - Lumbar support
6 - Catches
7 - Fitting bolt
- 20 Nm
- insert with locking fluid D 000 600 A2

8 - Spring
