Fire Extinguisher Bracket (Passengers Side), Removing and Installing



Fire Extinguisher Bracket (Passengers Side), Removing And Installing

Removing
- Remove seat.
- Remove fire extinguisher.

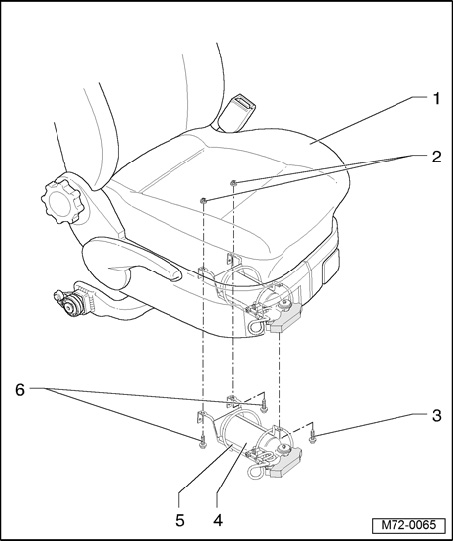

- Remove bolts - 3 - and - 6 -.







Installing
- Installation is performed in the reverse order of removal.
