Backrest Heating Element, Removing and Installing

Backrest Heating Element, Removing And Installing

Removing

CAUTION:
- Do not install normal seat heater elements (for fabric seat covers) in vehicles with leather seat covers.
- There is a danger the seat heater may overheat.

- Remove seat.
- Remove backrest.
- Remove backrest cover.

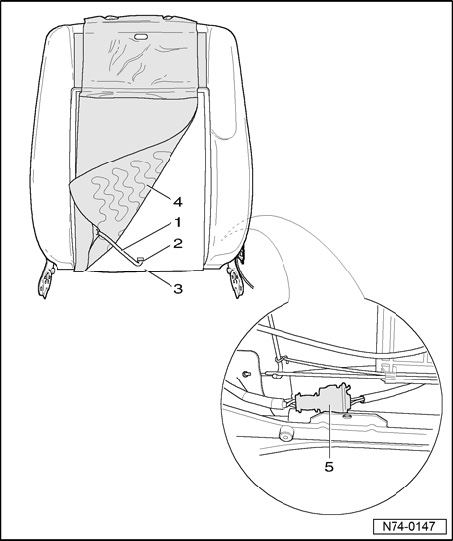

- Disconnect harness connector - 5 -.
- Guide cable - 1 - through opening - 2 - in center part of cushion - 3 - and remove heating element - 4 -.

NOTE: With leather version 05.03 -->, heating element is integrated in backrest cover and can only replaced together with backrest cover.

Installing
- Installation is the reverse order of removal.
