Sunroof / Moonroof Track: Testing and Inspection

Parallel Running, Checking

- Remove glass panel for sunroof.

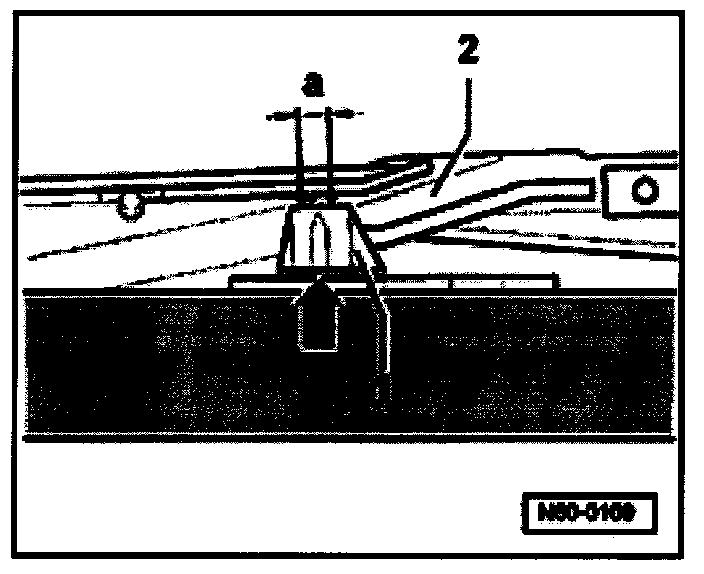

The mark -arrow- on the rear of the guide upper section -1- must, on both sides, lie within the marks -dimension a- on the guide rail gate -2-.

The slotted guide rail -2- must be located in the guide rails (cannot be moved by hand).
