Sunroof / Moonroof Track: Service and Repair

Slotted Guide, Removing

- Remove glass panel for sunroof.
- Remove assembly unit.
- Remove sunroof.

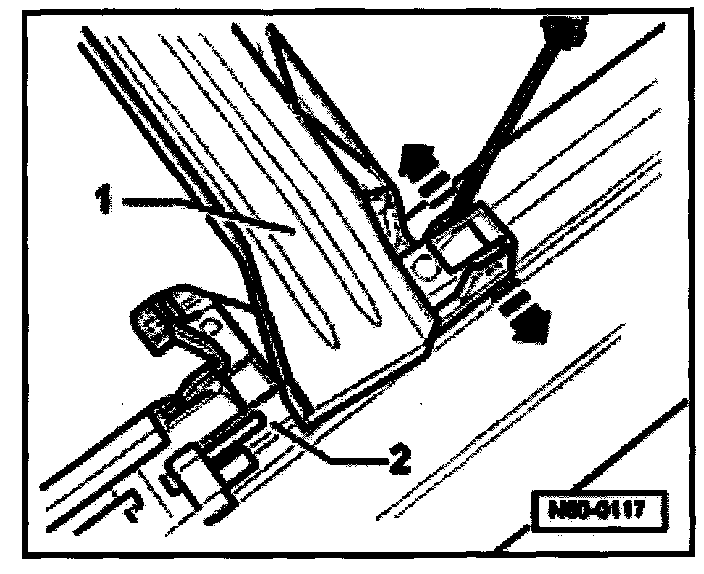

- Unclip end cap -1- -arrows- from guide rail -2- and then pull off.


NOTE: When installing seal end piece -1- to guide rail with Butyl adhesive sealing cord AKL 450 005 05.







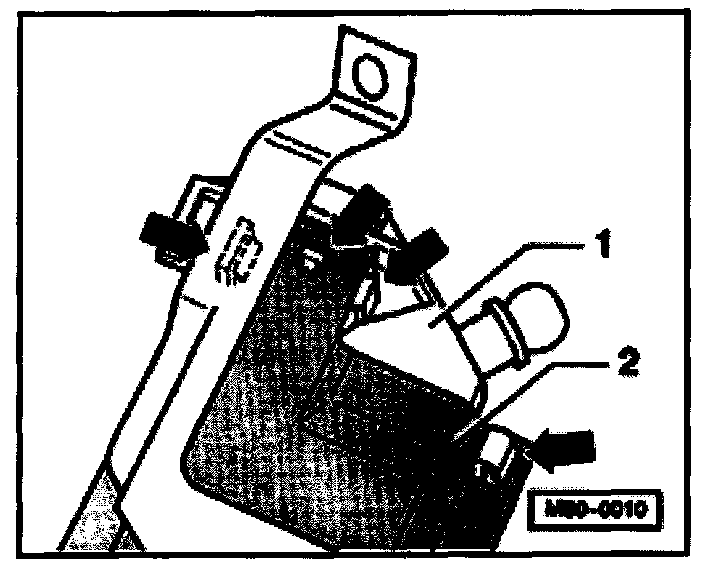

- Unclip water channel -1- from locking lug guide -2- on both sides carefully with a screwdriver and take off.

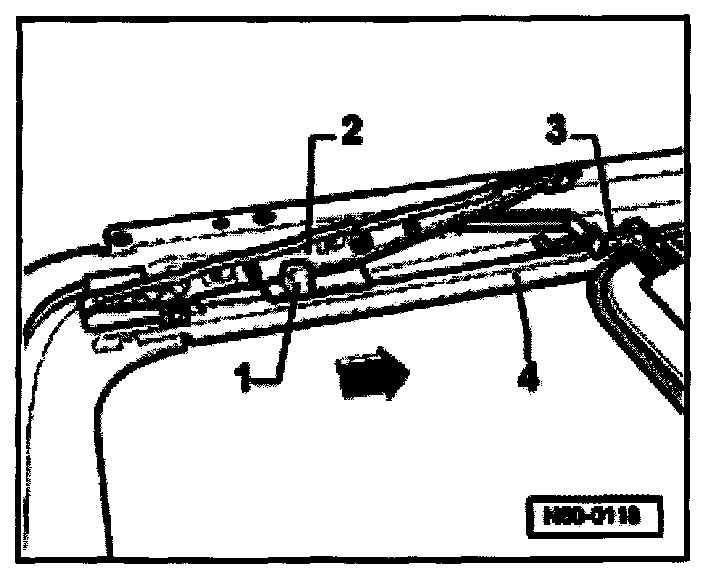

- Slide rear guide -1- in guide rail -4- in direction of arrow until the locking lug guide -3- is released.
- Pull rear guide -1-, Locking lug guide -3- and slotted -2- together out from guide rails -4-.


NOTE: Always renew guide with cable as a pair.
