Sunroof / Moonroof Track: Adjustments

Parallel Running, Adjusting


NOTE: The parallel running adjustment can only be undertaken when the drive and glass panel are removed ("0" position).


- Remove sunroof.

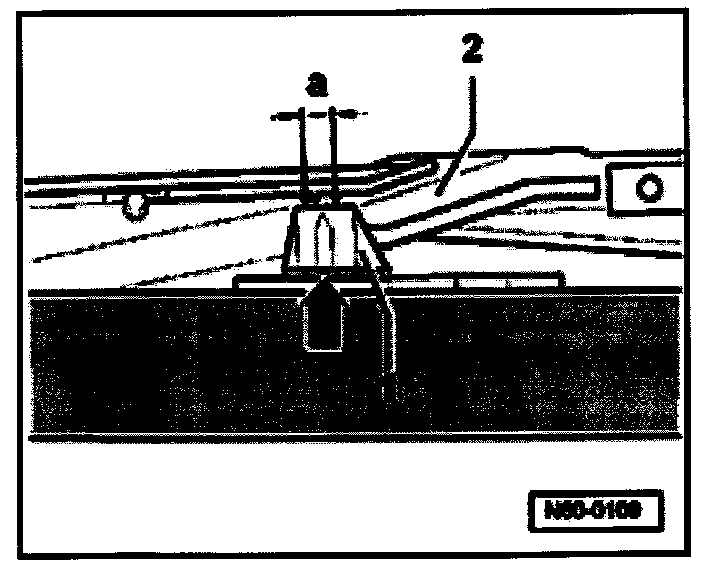

The mark -arrow- on the rear of the guide upper section -1- must, on both sides, lie within the marks -dimension a- on the guide rail gate -2-.

The slotted guide rail -2- must be located in the guide rails (cannot be moved by hand).

- Slide guide upper part -1- from front to rear only centrally between the marks.
- Install drive in this position ("0" position).

Then check "0" position.
