Sunroof Glass Panel, Removing

Sunroof Glass Panel, Removing

- Slide sliding headlining to rear.
- Tilt sunroof open.

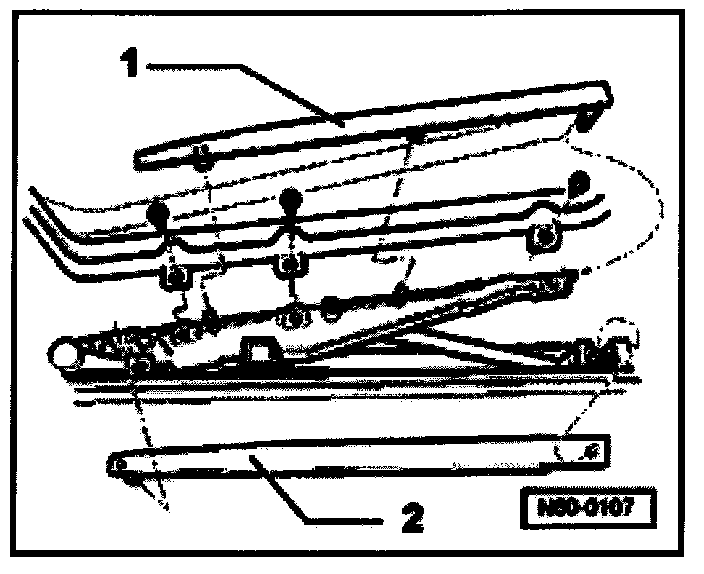

- Unclip lower trim -2- in forward area, inwards to center of vehicle and unhook at rear.
- Unclip upper trim -1- at front and center and unhook at rear.







- Remove securing screws (Tone insert T 25; 4.5 Nm).
- Take sunroof panel out upwards.


NOTE: The sunroof must not moved to position "Open" when removed, because the water channel will not be compressed by the glass panel and can cant inside the roof.


Sunroof Glass Panel, Installing

Panel must be installed in "0 position" (panel closed).

"0" position:

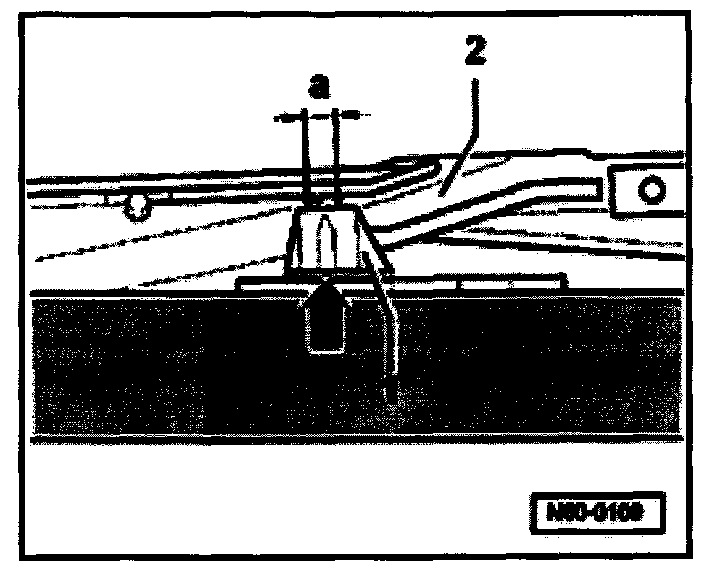

The mark -arrow- on the rear of the guide upper section -1- must, on both sides, lie within the marks -dimension a- on the guide rail gate -2-.

The slotted guide rail -2- must be located in the guide rails (cannot be moved by hand).

If this is not the case, adjust parallel running.

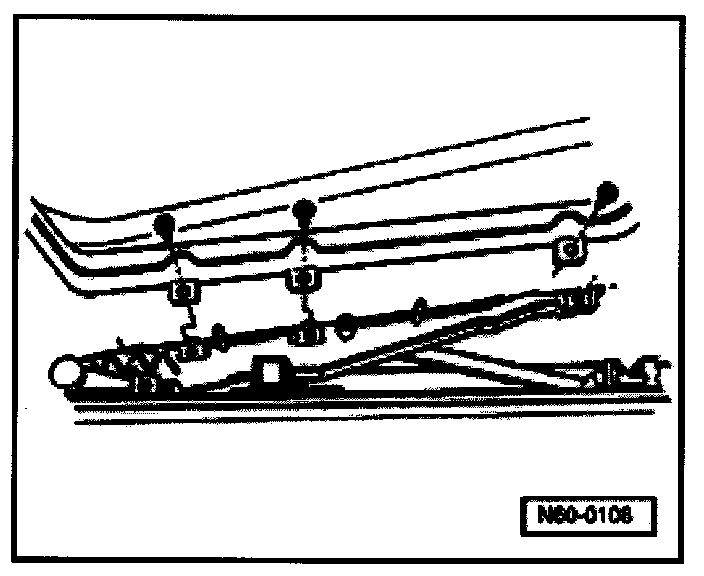

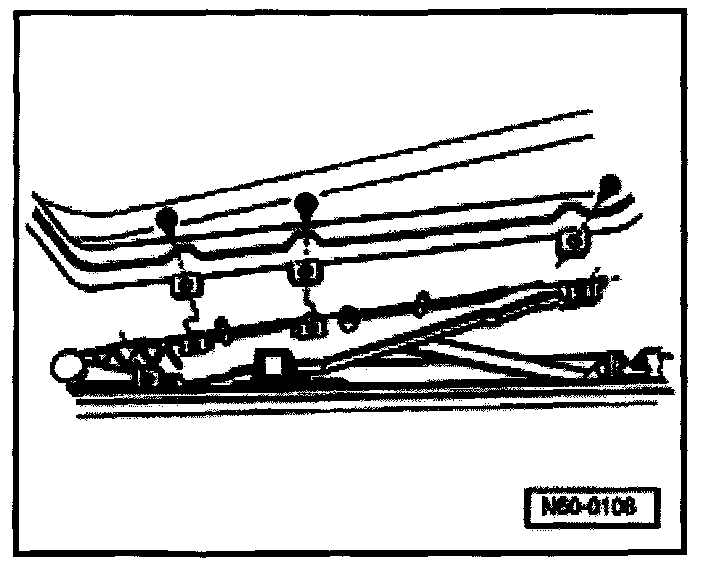

- Place sunroof on from above and screw in securing screws (guide rail/panel).
- Lightly tighten securing screws (Torx T 25).


NOTE: After adjusting panel height tighten securing screws (4.5 Nm).
