Sunroof / Moonroof Panel: Locations

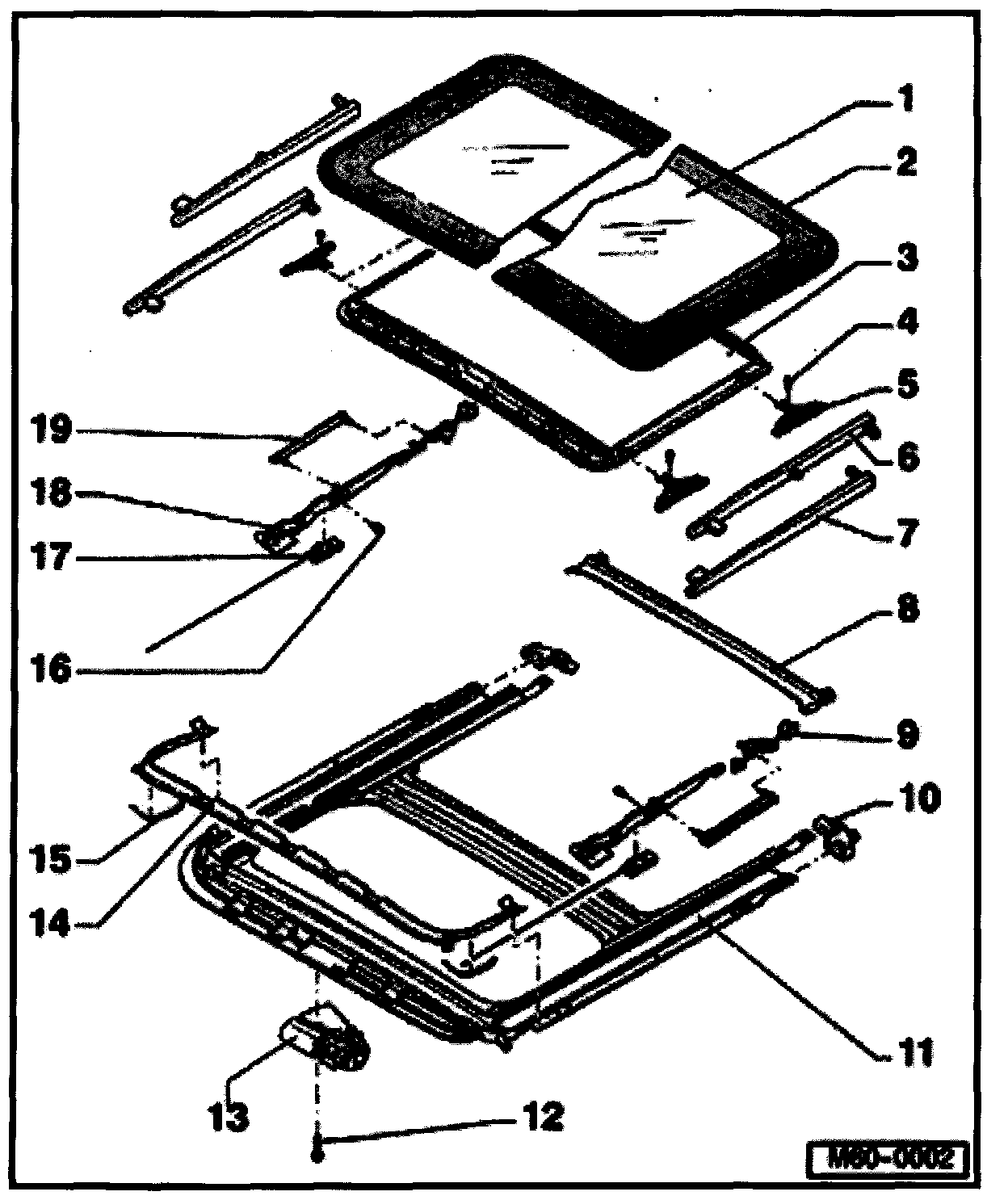

Sunroof With Glass Panel, Assembly Overview







1 - Glass panel for sunroof (single pane safety glass)
2 - Panel seal
- Seal joint located centrally at rear
3 - Sliding headlining
4 - Countersunk screws (micro encapsulated)
- Always use new countersunk screws
- 3.5 Nm
5 - Slide
6 - Upper trim
7 - Lower trim
8 - Water channel
- Removed together with slotted guide rail.
9 - Guide locking hook
10 - End piece
- Use Butyl adhesive sealing cord AKL 450 005 05 to seal
11 - Carrier unit
- If required, guide channels are to be greased with special grease G 000 450 02 only, otherwise correct operation cannot be guaranteed.
12 - Bolt
- Qty. 3
13 - Electrical drive
- Adjusting drive (0 position)
14 - Wind deflector
15 - Spring
16 - Tone screw
- Torx key T25
- 4.5 Nm
17 - Rear guide
- Removed together with slotted guide rail.
18 - Slotted guide rail
19 - Spacer
- Removed together with slotted guide rail.
