Sunroof Glass Panel, Adjusting Height

Sunroof Glass Panel, Adjusting Height

- Sunroof "0" position OK.

- Tilt sunroof open.
- Slide sliding headlining to rear.

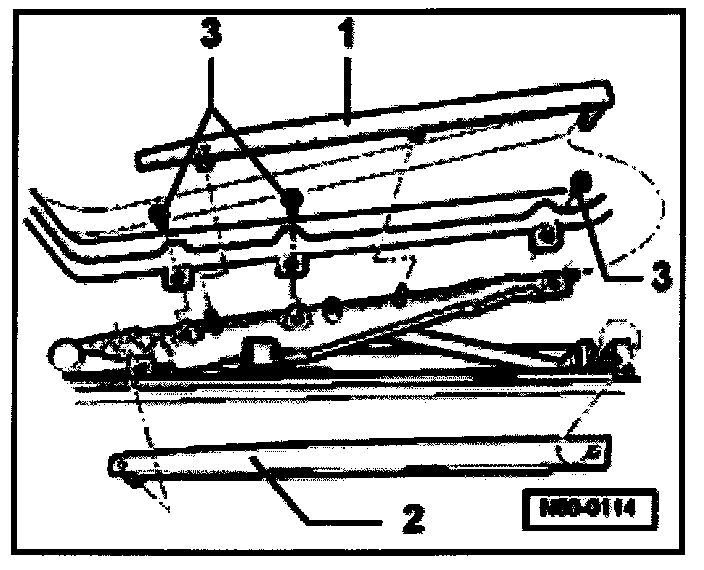

- Unclip lower trim -2- in forward area, inwards to center of vehicle and unhook at rear.

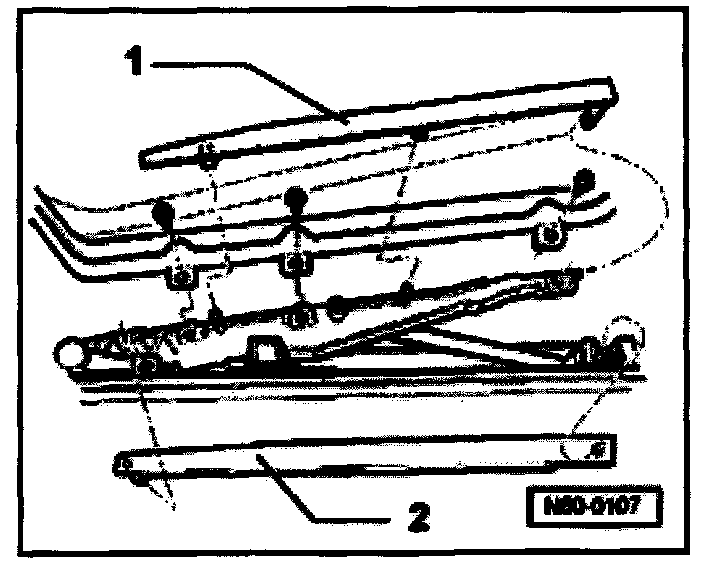

- Unclip upper trim -1- at front and center and unhook at rear.
- Remove securing screws -3- (Torx key T 25; 4.5 Nm).
- Run glass panel into "closed" position.
- Carry out height adjustment of glass panel at front and rear on both sides as follows:

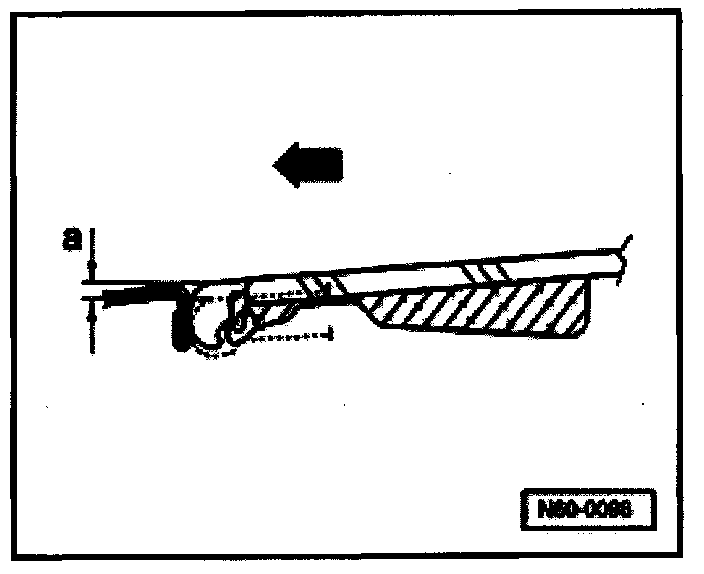

Panel adjustment front:

a = 0...1 mm lower than roof level
Arrow = Direction of travel (forwards)







Panel adjustment rear:

b = 0...1 mm higher than roof level
Arrow = Direction of travel (forwards)

- Tighten screws for glass panel (4.5 Nm).
Always tighten left and right-hand glass panel sides symmetrically.
- Tilt sunroof open.







- Hook in upper trim -1- at rear and clip front and center in.
- Hook in rear of lower trim -2- and clip front in.
