Sunroof / Moonroof Interior Trim Panel: Service and Repair

Sliding Headlining, Removing

- Remove glass panel for sunroof.
- Slide headlining to rear.

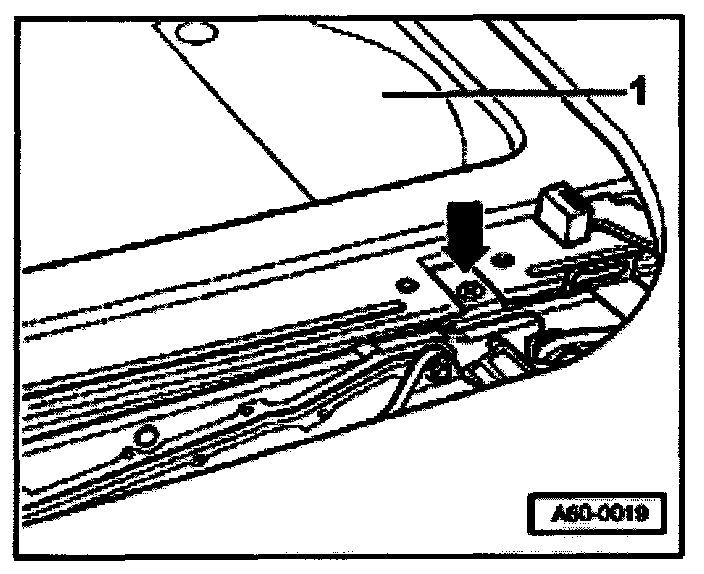

- Remove forward bolts -arrow- on left and right-hand sides. Pull out slide forwards over the stop -1-.
- Slide headlining forwards.

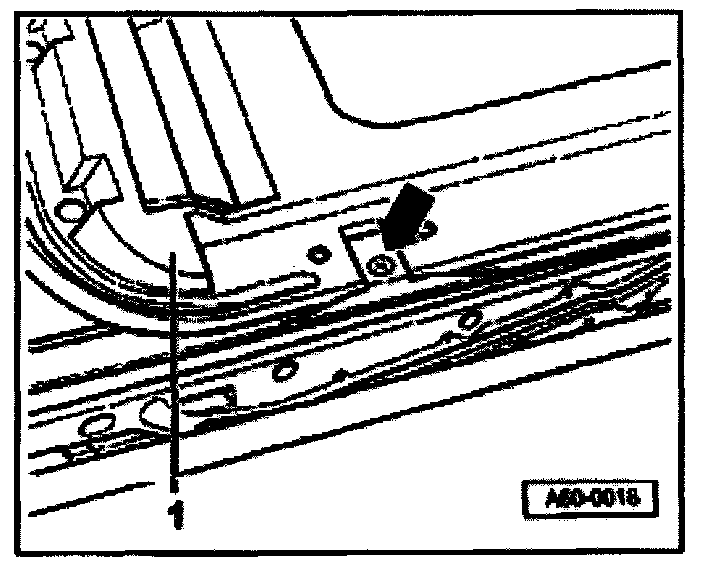

- Remove rear bolts -arrow- on left and right-hand sides. Pull out slide to rear and take out sliding head liner -1-.
