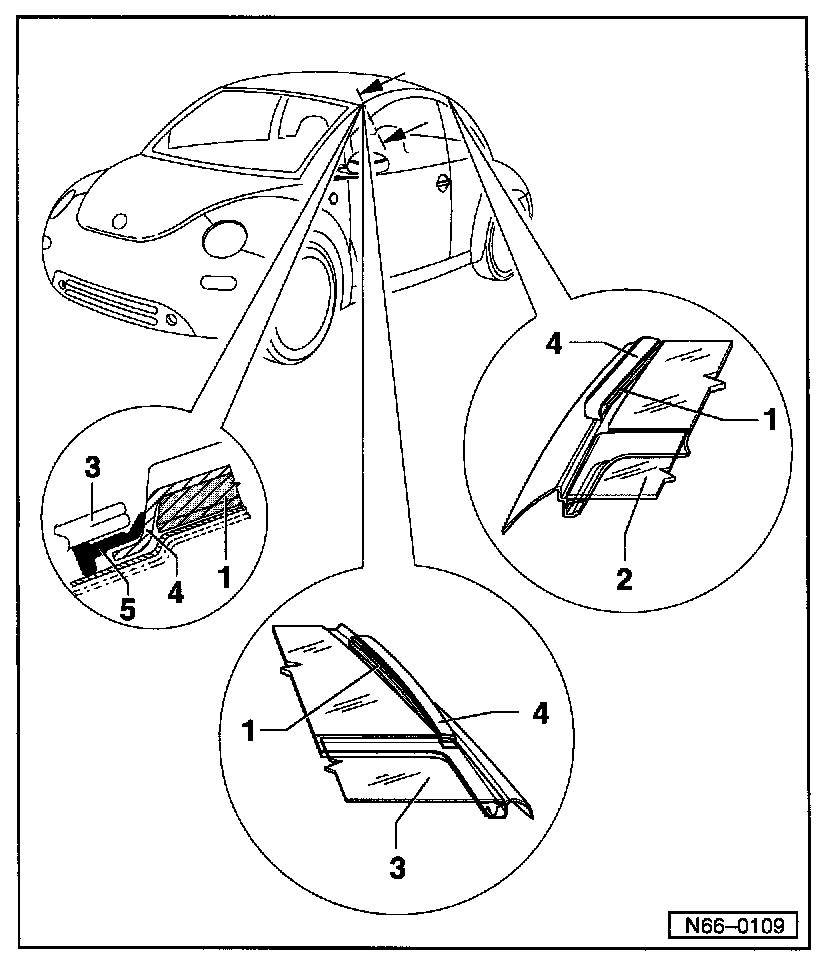

Luggage / Roof Rack Frame: Service and Repair

1 - Roof moulding
- With cover strip -4-.
- Do not bend roof moulding

- Starting at windshield, carefully pry off with soft plastic wedge.
- Place root moulding on rear end of roof channel and press in from rear to front stop.

2 - Rear window

3 - Windshield

4 - Cover strip
- Installing:
- Insert cover strip into pocket of roof moulding onto stop. Then press into roof channel.

5 - Sealing lip
- Component part of pre-coating
