Shock Absorber, Removing and Installing

Shock Absorber, Removing And Installing

Removing
To remove and install damper, Torx screwdriver T 45, 100 mm long (commercially available) must be used.

- Open convertible top.
- Remove side trim

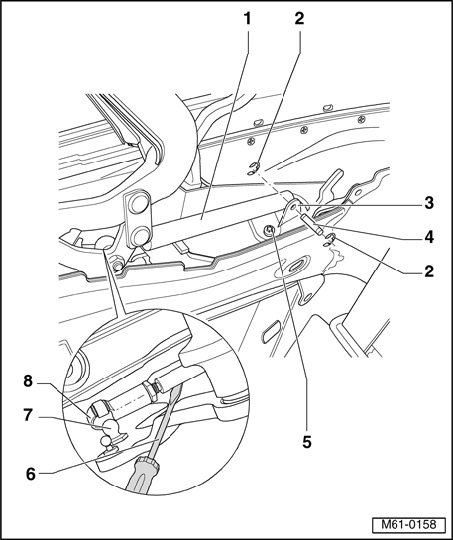

- Pry ball socket - 8 - off ball head - 7 - using screwdriver - 6 -.







- Close convertible top manually.
- Remove bolts - 5 - (2x, 18 Nm).

Installing
Installation is performed in the reverse order of removal.
