Manual Convertible Top, Assembly Overview

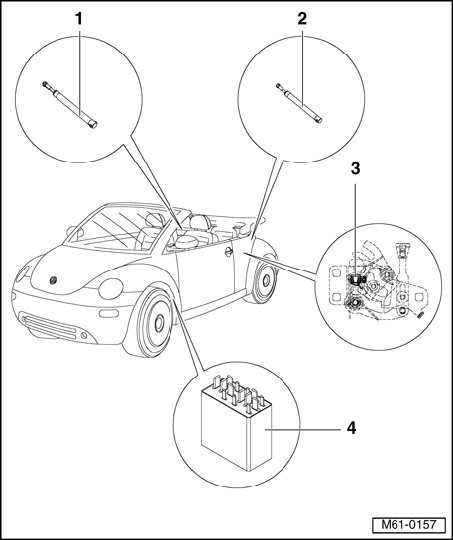

Manual Convertible Top, Assembly Overview







1 - Right damper
2 - Left damper
3 - Convertible Top Open Position Switch F171
- Installed in convertible top latch
- Supplied as replacement part
- Allocation Parts catalog

4 - Convertible Top Control Module J256
- On 13-pin secondary relay carrier above relay carrier
