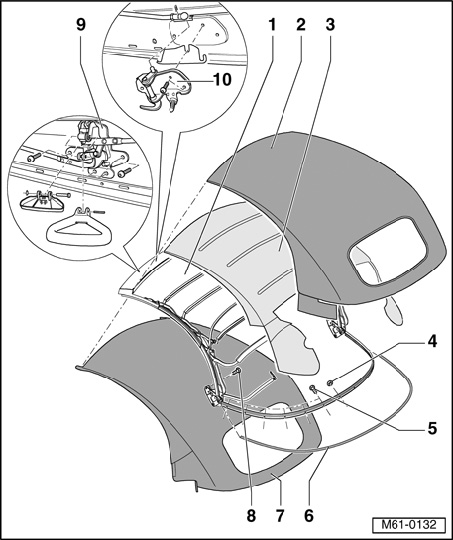

Electric-/Hydraulic Convertible Top, Assembly Overview
Electric-/Hydraulic Convertible Top, Assembly Overview
NOTE: Manual convertible top
1 - Convertible top frame
2 - Convertible top cover
- Rear window is a component of convertible top cover
NOTE: Entire convertible top cover must be replaced if rear window is damaged.
3 - Padding
4 - Nut
- 10 Nm
5 - Bolt
- 12x
- 10 Nm
6 - Sealing band
7 - Convertible top headliner
8 - Bolt
- 50 Nm
9 - Front convertible top latch
10 - Front retaining latch
