Electric/Hydraulic Convertible Top

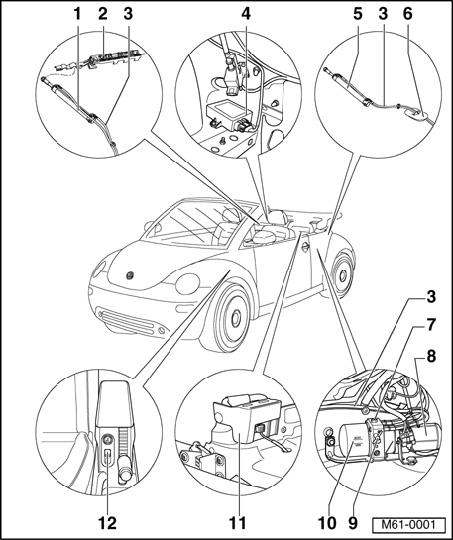

Assembly Overview







1 - Right hydraulic cylinder
2 - Convertible Top Open Position Switch F171
- Installed only on right side
- Unclip from hydraulic cylinder - 1 -.

3 - Hydraulic hoses
4 - Convertible Top Control Module j256
- In luggage compartment, right rear

5 - Left hydraulic cylinder
6 - Buffer plugs
7 - Oil filler plug
- 5 Nm

8 - Hydraulic Pump
9 - Toggle bolt
- Unthreading toggle bolt releases pressure from hydraulic system and convertible top can be operated by hand.

10 - Fill level indicator
- Hydraulic oil must stand between min- and max marking with convertible top open

11 - Right Contact Switch, cover installed F156 or left F155
- 2x

12 - Convertible Top Operation Switch E137
- Located in center console
