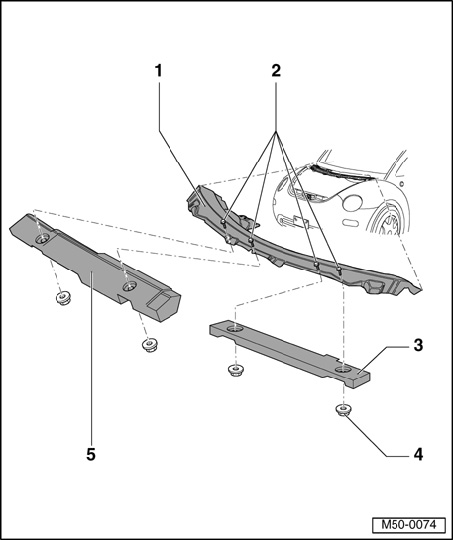

Counterbalance Weight, Assembly Overview (Convertible)

Counterbalance Weight, Assembly Overview (Convertible)







1 - Bulkhead carrier
2 - Bolt
- 4x

3 - Balance weight
- Removing:
- Remove plenum chamber cover.
- Remove nut - 4 -.

4 - Nut
- 4x
- 5 Nm

5 - Balance weight
