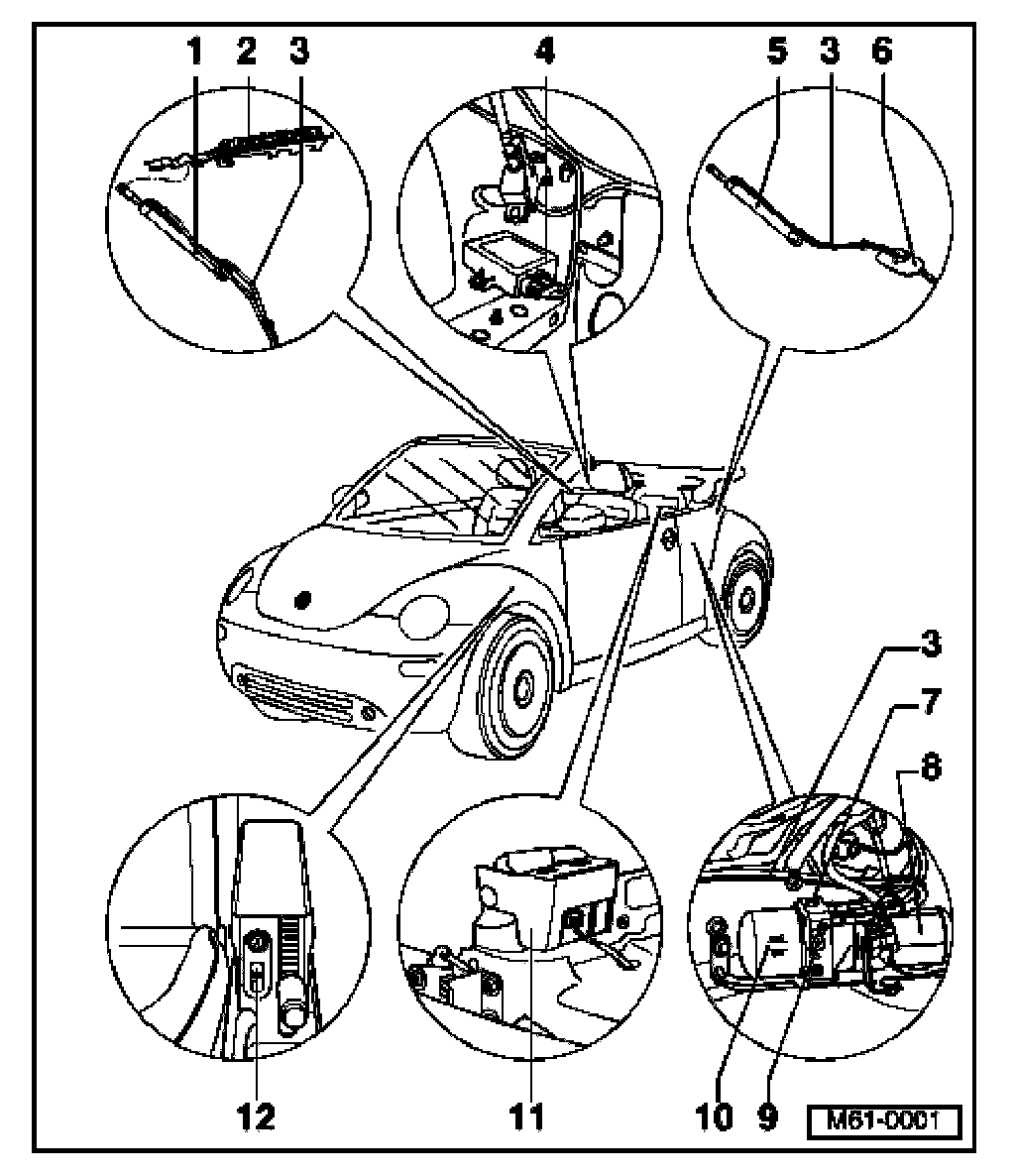

Electro/Hydraulic Convertible Top, Components

Electro/Hydraulic Convertible Top, Components







1 Right hydraulic cylinder
2 Convertible Top Open Position Switch - F171-
- Installed only on right-hand side.
- Unclip from hydraulic cylinder -1-.
3 Hydraulic hoses
4 Convertible Top Control Module -J256-
- On right in luggage compartment.
- Further information
5 Left hydraulic cylinder
6 Plug
7 Oil filler plug
- 5 Nm.
8 Hydraulic pump
9 Bypass valve Unscrewing the bypass valve releases pressure in the hydraulic system and the convertible top can be operated by hand.
10 Fluid level indicator Hydraulic oil level must lie between min. and max. marks when convertible top is open.
11 Right Contact Switch (Cover Installed) - F156- or Left Contact Switch (Cover Installed) -F155- for convertible top Qty. 2.
12 Convertible Top Operation Switch -E137- Installed in center console.
