Roof Crossmember Seal and Retaining Track, Removing and Installing (Convertible)

Roof Crossmember Seal And Retaining Track, Removing And Installing (Convertible)

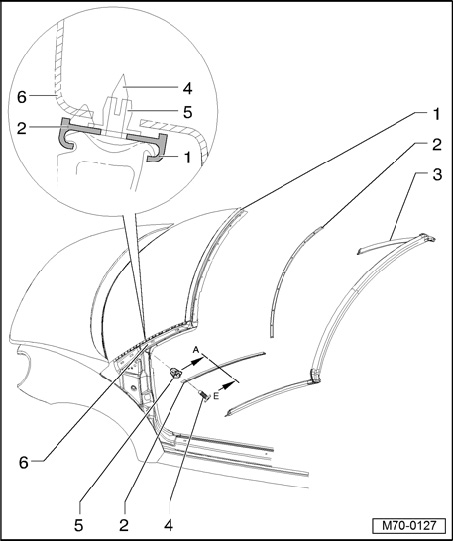

Removing
- Open convertible top.







- Remove seal - 3 - from retaining track - 2 -.







- Remove bolts - 4 - (15x).
- Remove retaining track - 2 -.

Installing
- Installation is performed in the reverse order of removal.

NOTE: Ensure proper seating in retaining track - 2 - when installing seal - 3 -.
