Roof Crossmember Seal and Retaining Rail, Electric-/Hydraulic and Manual Convertible Top, Removing and Installing

Roof Crossmember Seal And Retaining Rail, Electric-/hydraulic And Manual Convertible Top, Removing And Installing

Removing

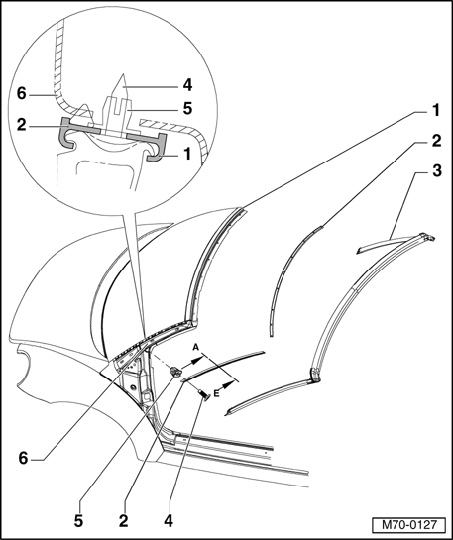

- Open convertible top.







- Remove seal - 1 - from retaining rail.

NOTE: Ensure proper seating in retaining track - 2 - when installing seal - 1 -.

- Remove bolts - 4 -.
- Remove retaining rail - 2 -.

Installing
Installation is performed in the reverse order of removal.
