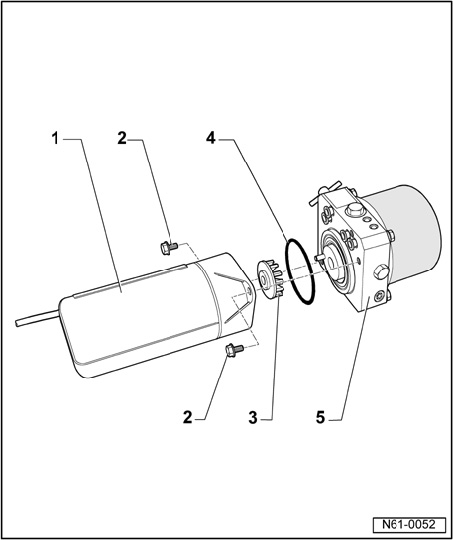

Pump Wheel For Hydraulic Pump, Assembly Overview

Pump Wheel For Hydraulic Pump, Assembly Overview







1 - Motor for hydraulic pump
2 - Torx bolts
- Always replace
- 5 Nm

3 - Pump wheel
4 - Sealing ring
- Always replace
- Sealing ring is contained in repair set

5 - Hydraulic Pump
