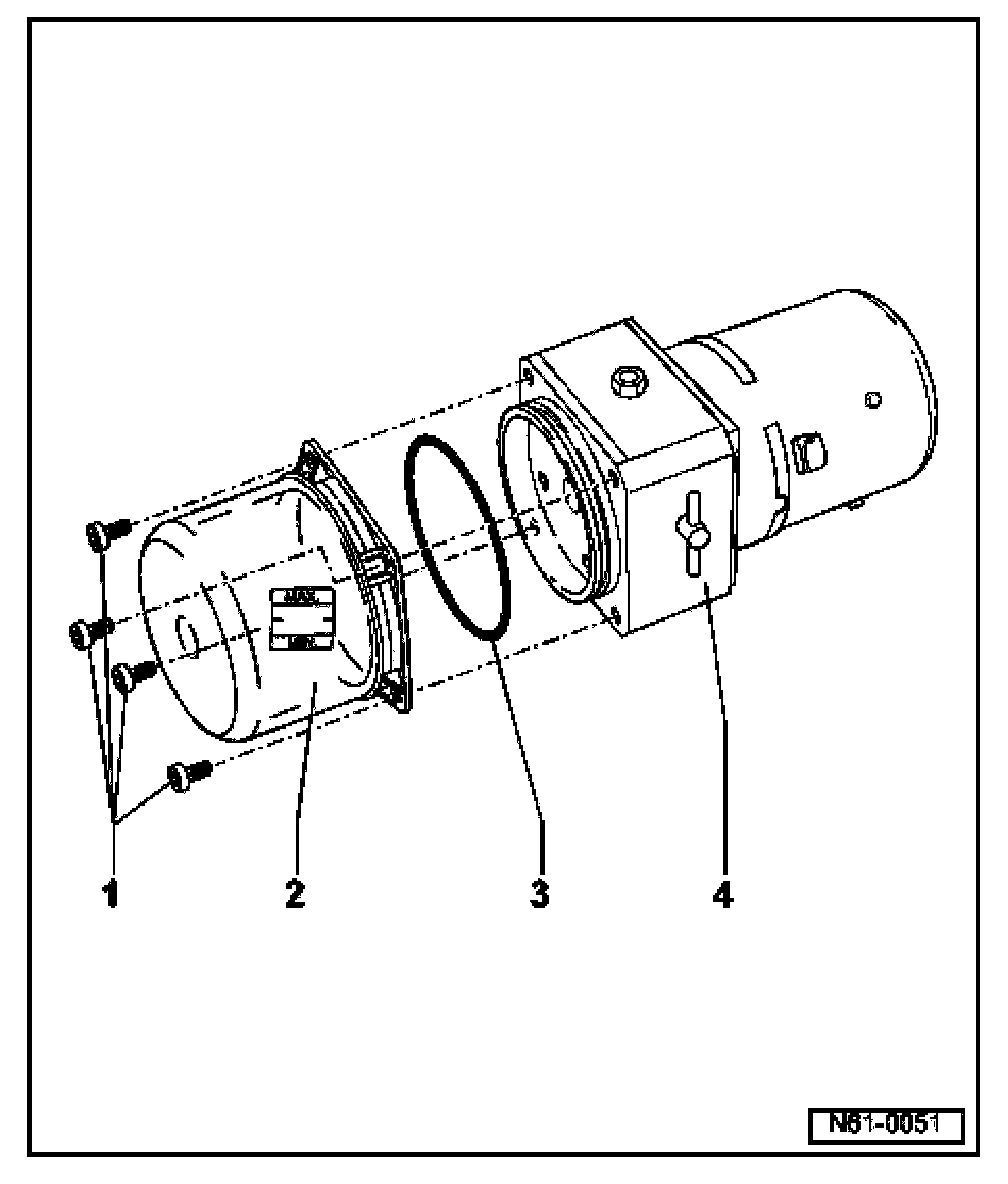

Oil Reservoir, Assembly Overview

Oil Reservoir, Assembly Overview
- Remove hydraulic pump







1 Torx(R) screws
- 2 Nm.
- Always replace screws.
2 Oil reservoir
3 O-ring
- Always replace.
- O-ring is included in repair kit.
4 Hydraulic pump
