Rear Convertible Top Latch, Manual Convertible Top, Assembly Overview

Rear Convertible Top Latch, Electric-/Hydraulic Convertible Top, Assembly Overview

NOTE: Manual convertible top.

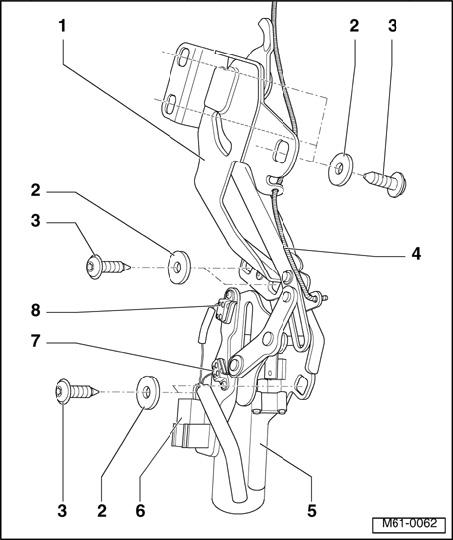

1 - Convertible top latch
- Removing:
- Remove side trim.
- Open convertible top.
- Disconnect harness connector.
- Remove bolts.

- Installing:
- Install bolts and tighten lightly.
- Disconnect harness connector.
- Align module for convertible top latch.
- Close convertible top.
- When convertible top has engaged, tighten bolts.
- Then perform function test.

2 - Washer
- 7x

3 - Bolt
- 10 Nm
- 7x

4 - Cable for emergency release
5 - Adjusting motor
6 - Harness connector
7 - Micro switch (convertible top closed)
8 - Micro switch (convertible top open)
