Convertible Top Lock, Removing and Installing

Convertible Top Lock, Removing And Installing

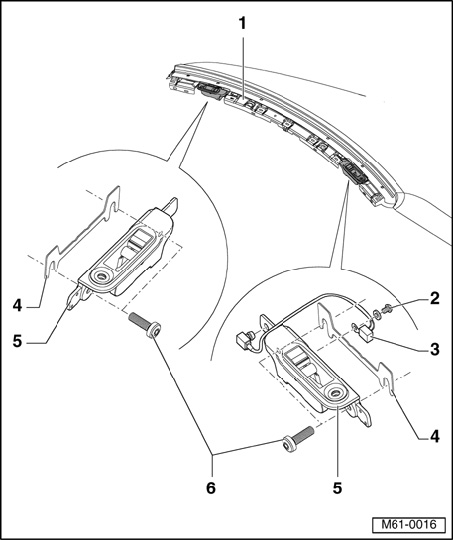

1 - Roof crossmember
2 - Bolt
3 - Micro switch
4 - Plate
5 - Convertible top lock
- Removing:
- Remove roof crossmember trim
- Disconnect micro switch harness connector.
- Remove bolt.

- Installing:
- Installation is the reverse order of removal.

6 - Bolt
- 10 Nm

NOTE:
- Convertible top can be adjusted via elongated holes in convertible top lock - 5 -.
- Convertible top must be seated centrally on roof crossmember and evenly on A-pillar.
