Convertible Top Front Latch, Electric-/Hydraulic and Manual Convertible Top - Assembly Overview

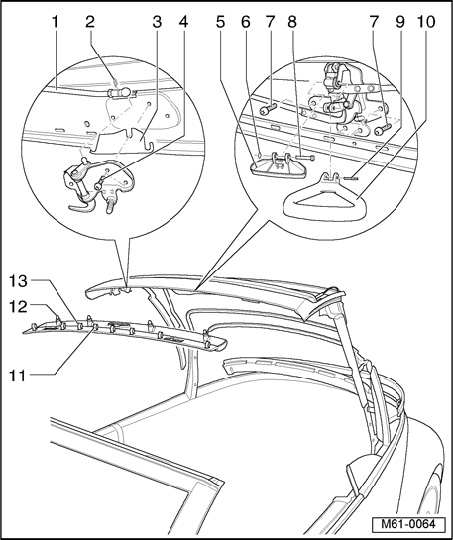

Convertible Top Front Latch, Electric-/Hydraulic And Manual Convertible Top - Assembly Overview







1 - Linkage
2 - Securing clip
3 - Plate
4 - Bolt
- 10 Nm

5 - Face plate
- Removing: Remove securing clip.
- Remove pins.

6 - Circlip
7 - Bolt
- 10 Nm

8 - Pin
9 - Bolt
10 - Handle
- Removing:
- Remove socket head bolt from side.

11 - Clip
12 - Clip
13 - Roof edge trim
- Removing:
- Unclip front and rear.
- Turn 90° and remove over handle.
