Hydraulic Cylinder, Removing and Installing

Hydraulic Cylinder, Removing And Installing

NOTE:
- Hydraulic system is sensitive to any ingress of dirt.
- As soon as system is opened, corresponding components must be covered so that no dirt can enter hydraulic system.

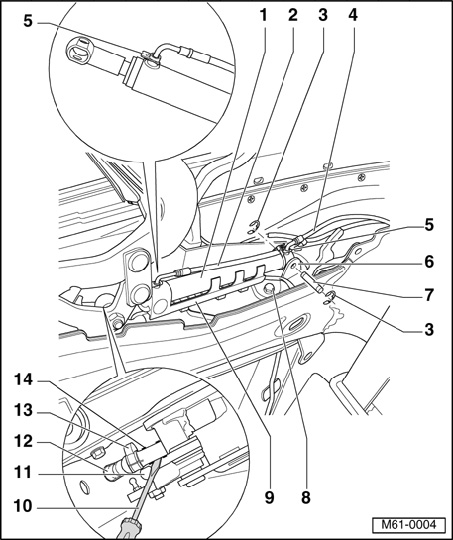

Removing
- Open convertible top.
- Remove side trim







- Loosen toggle bolt on hydraulic pump so that any present residual pressure can vent from the system.







- Open cap - 12 - of Convertible Top Open Position Switch F171
- Pry securing clip - 13 - off piston rod - 14 -.
- Pry piston rod - 14 - off ball head using screwdriver - 10 -.
- Close convertible top manually.
- Remove bolts - 8 -.
- Remove retaining clip - 5 -.
- Remove hydraulic hoses - 2 - and - 4 -.

Installing







- Installation is performed in the reverse order of removal.







NOTE: When installing, check for damages and proper seating of O-rings on hydraulic lines.

- Hydraulic system, filling and bleeding.
