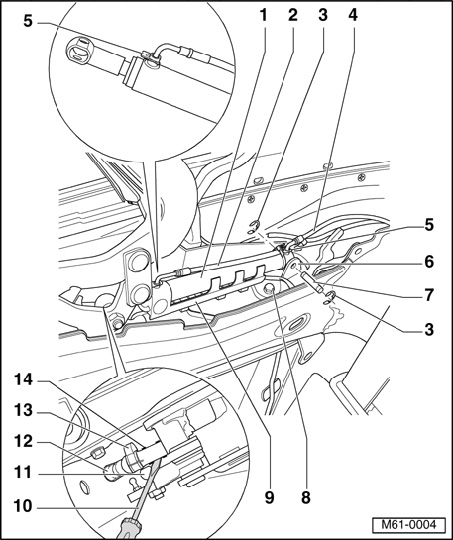

Hydraulic Cylinder, Assembly Overview

Hydraulic Cylinder, Assembly Overview







1 - Hydraulic cylinder
2 - Hydraulic hose
3 - Locking washer
4 - Hydraulic hose
5 - Retaining clip
6 - Bracket
7 - Pin
8 - Bolt
- 23 Nm
- 2x

9 - Convertible Top Open Position Switch F171
- Installed only on right side

10 - Screwdriver
11 - Ball head
12 - Cap
13 - Securing clip
14 - Piston rod
