Water Tray, Removing and Installing

Water Tray, Removing And Installing

NOTE: Removal and installation is described for left side of vehicle. The same instructions apply for removal and installation for the right-hand side.

Removing
- Remove convertible

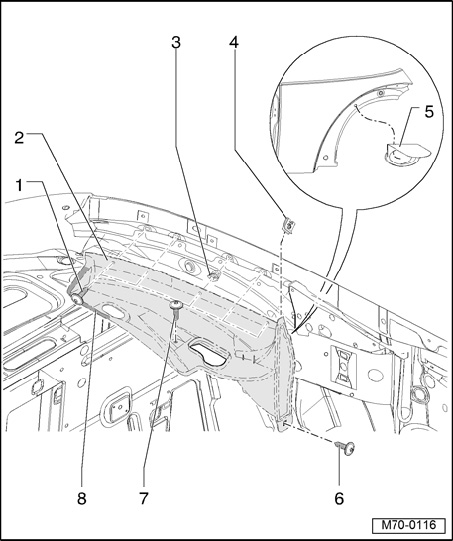

- Remove bolts - 1 -.







- Remove bolt - 6 -.







- Remove bolt - 7 -.
- Remove rear wheel housing liner
- Remove water drain hose - 5 -.
- Remove water tray upward.

Installing
- Install water tray from above.
- Install all bolts.







- Insert drain hose - 1 - in water tray - 2 -.

NOTE: Make sure water drain hose sealing lip engages into water tray.







- Apply sealant D 469 101 A3 in area - 1 -.
- Install convertible
