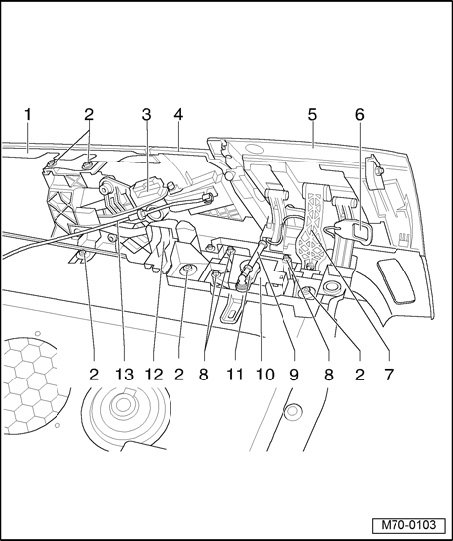

Flap Positioning Module - Assembly Overview

Flap Positioning Module - Assembly Overview







1 - Side panel
- painted in vehicle color

2 - Bolt
- 5x
- 3 Nm
- Beforehand, remove side trim.

3 - Small flap base
4 - Small trim
- painted in vehicle color

5 - Large trim
- Painted in vehicle color

6 - Emergency release
- Only for vehicles with electric-/hydraulic convertible

7 - Large flap base
8 - Bolt
- 3 pieces
- 3 Nm

9 - Push rod
10 - Flap servomotor
11 - Lever
12 - Foundation frame for flap positioning module
- Removing:
- Remove side trim.
- Remove bolts.
- Remove release cable.

13 - Release cable
