Wind Deflector Locking Pin Assembly, Removing and Installing

Wind Deflector Locking Pin Assembly, Removing And Installing

Removing

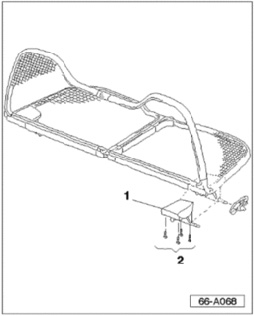

- Remove screws - 2 - (Qty. 4) on locking pin assembly - 1 -.

Installing
Install new locking pin assembly - 1 - and screws - 2 - (Qty. 4).

Tightening torque: 1.5 Nm ± 0.2 Nm

NOTE: Do not reuse screws. Always use new screws that come with locking pin assembly kit.
