Rollover Bar (Top Closed), Lowering

Rollover Bar (Convertible Top Closed), Lowering

WARNING: Ensure that hands are not caught/pinched when lowering the rollover bar







- Open the convertible top until the supporting elements are free.

NOTE: Do not open the convertible top completely: Otherwise the convertible top will be damaged.

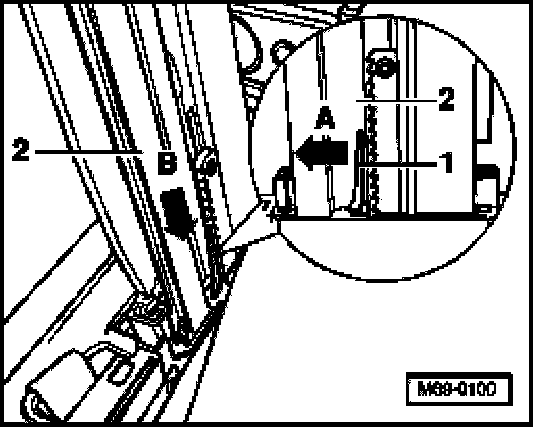

- Move locking device -1- in the direction of the arrow -A- and hold it tight.
- Slide the module -2- downward in direction of arrow -B-.
- Release the locking bar when the roll-over bar reaches its position -arrow-.
- Move the module further downward until it engages.
