Automatic Rollover Supports (TM) (Convertible), Removing and Installing

Automatic Rollover Support(TM)(convertible), Removing And Installing

Removing

Vehicles with electric-/hydraulic and manual convertible
- Remove left and right side trim.
- Remove rear headrest cover.

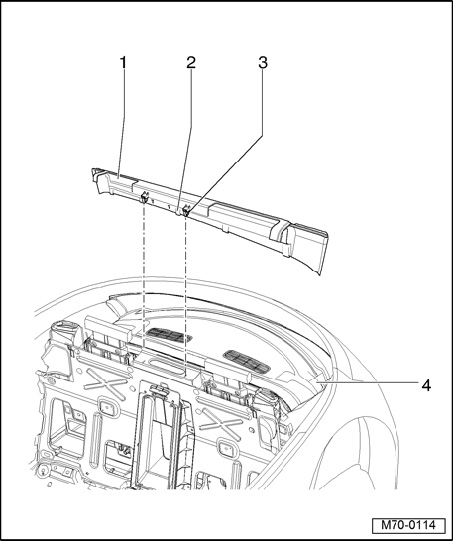

- Unclip clamp - 3 -.







- Carefully press catches - 2 - out of rear shelf - 4 -.
- Remove trim - 1 - upward.

Installing
- Installation is performed in the reverse order of removal.
