Lock Carrier, Moving to Service Position

Lock carrier, moving to service position






- Removing front part, refer to Front end, assembly overview Front End, Assembly Overview
- Unhook Bowden cable at lock.

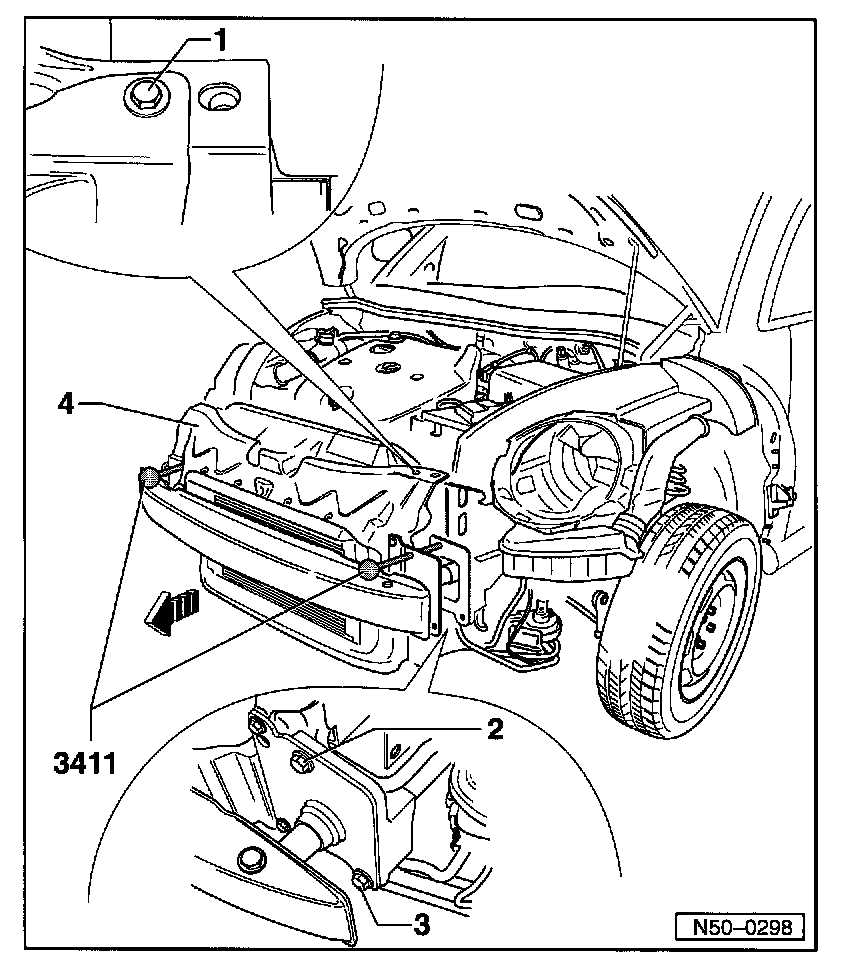

- Remove bolt -2- from each longitudinal member and install guide pins 3411 into this position on the left and right-hand longitudinal members.
- Remove bolts -1- and -3- on left and right-hand sides and pull lock carrier in area of guide rails 3411 forward.
