Door Lock Cylinder: Service and Repair

Lock Cylinder Housing, Removing

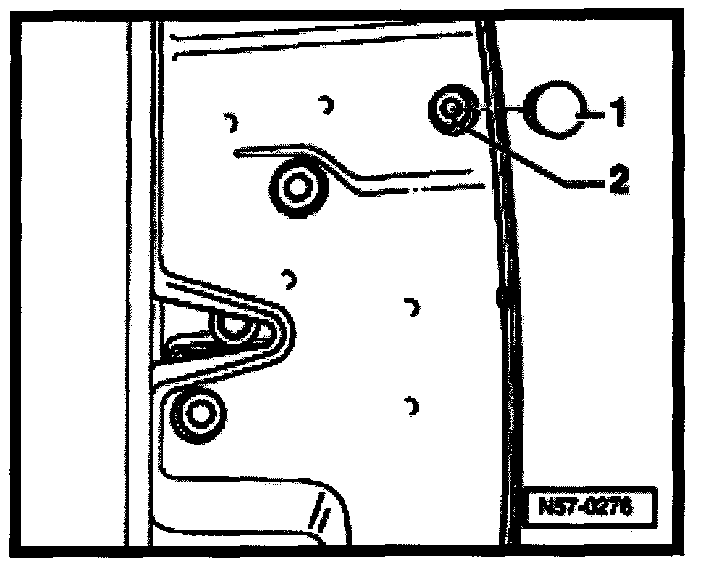

- Carefully pry out plug -1-.

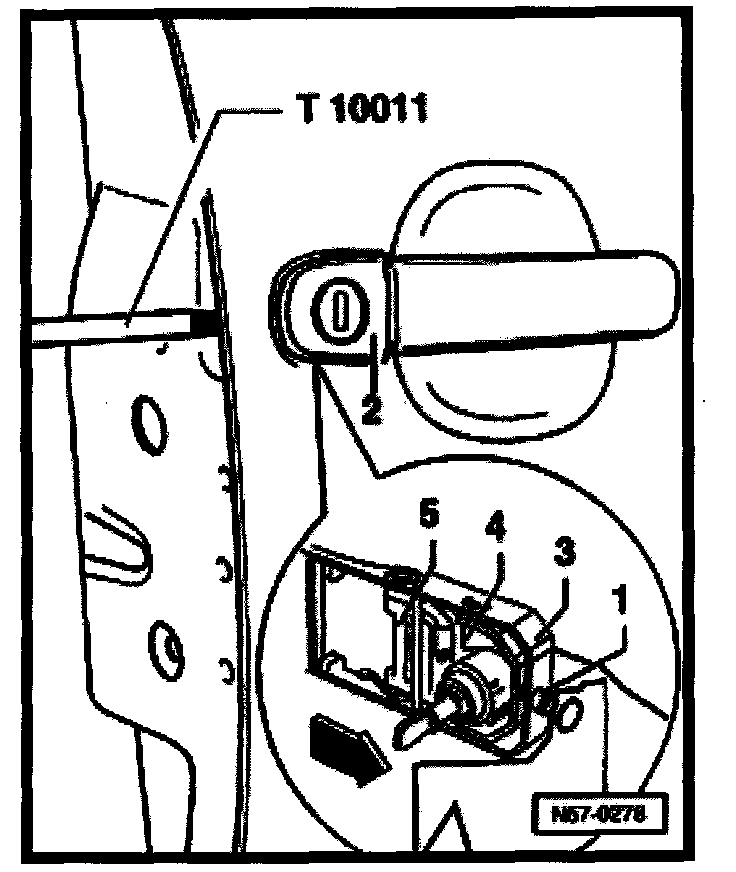

- Pull door handle and hold. Loosen screw -1- to stop with socket insert T 10011. This releases the lock cylinder housing.


CAUTION!
Loosen screw -1- only, if screw is removed, the door lock must be removed to realign.


- Pull lock cylinder housing -2- out of door handle bearing bracket at right angles.


NOTE: The lock cylinder housing is released before the screw -1- is removed.







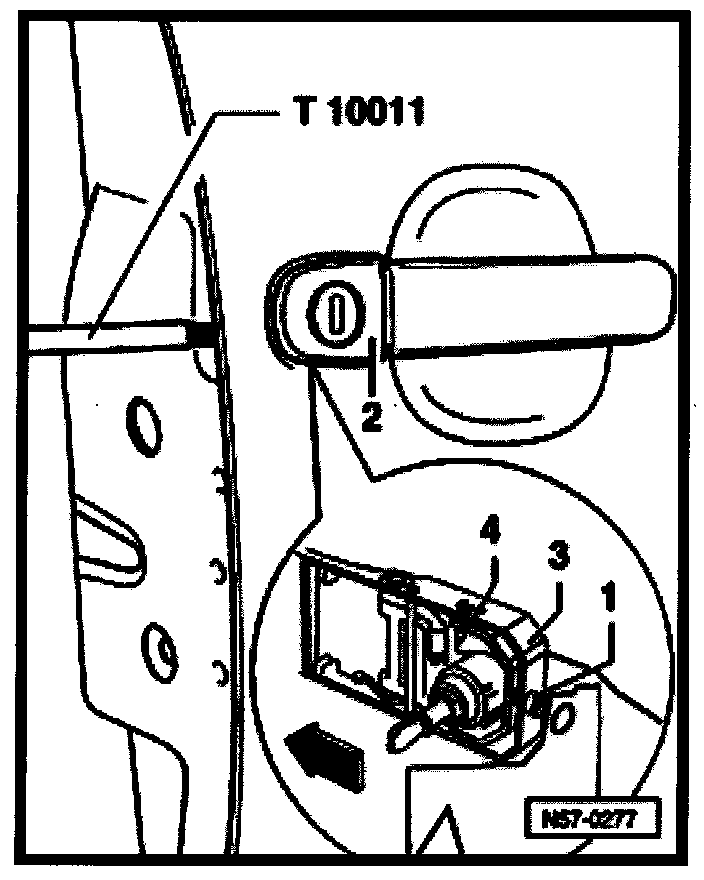

NOTE: By moving release -4- simultaneously tensioned and locked spring lever -5- for the handle is released (audible noise).


- Check function to ensure correct operation, an incorrectly adjusted bowden cable will not open door.







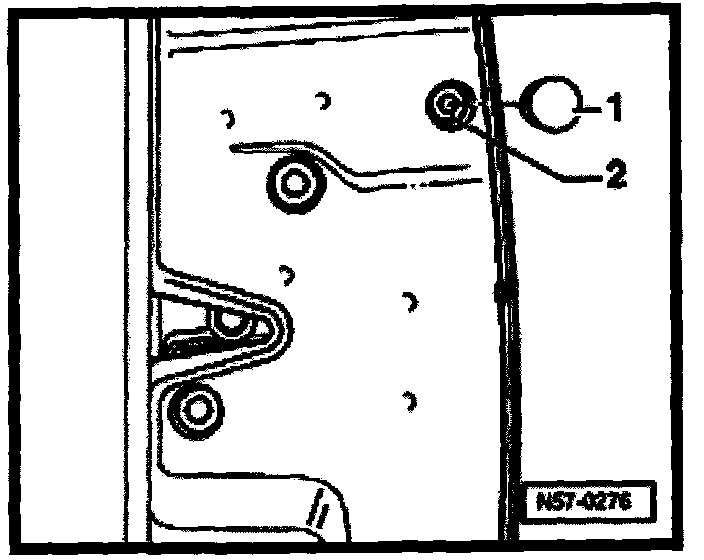

- Reinstall plug -1-.
