Side Trim, Removing and Installing

Side Trim, Removing And Installing

NOTE: Removal and installation is described for left side of vehicle. The same instructions apply for removal and installation for the right-hand side.

Removing
- Remove seatbench and remove backrest.

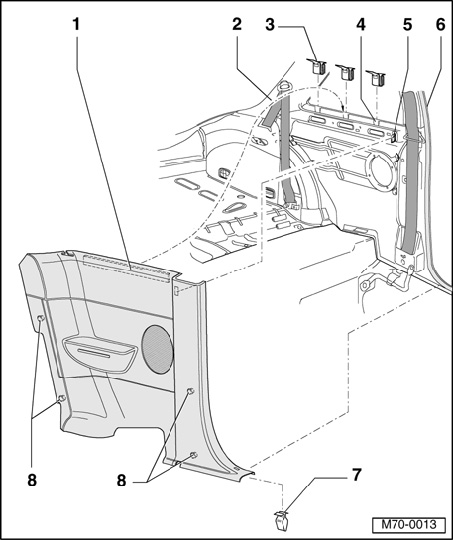

- Remove trim - 1 - in area of clips - 8 - and - 5 - and remove from clips - 3 -.







Installing







- Installation is performed in the reverse order of removal.







NOTE:
- Before installing trim - 1 -, check clips - 5 - and - 8 - and replace if necessary.
- Remove clips - 3 - from trim if necessary and attach to window flange.
- After assembling trim, make sure door inner seal is properly fitted.
