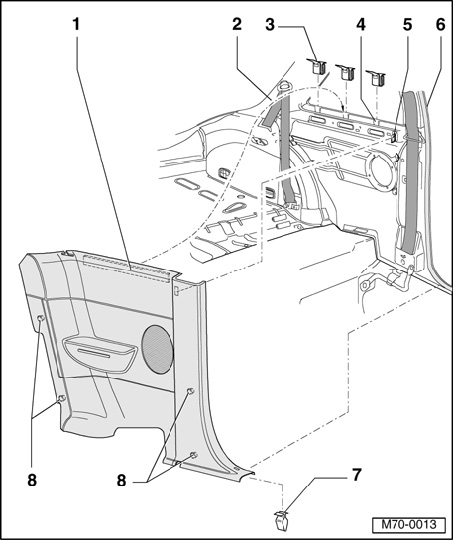

Side Trim - Assembly Overview

Side Trim - Assembly Overview







1 - Side trim
2 - Seatbelt
3 - Clip
- Inserted on flange (side window)

4 - Anchoring point
5 - Clip
6 - Internal door seal
7 - Clip
8 - Clip
