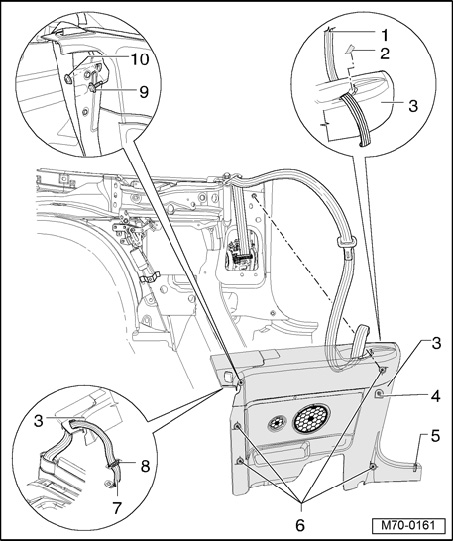

Side Trim - Assembly Overview

Side Trim - Assembly Overview

Vehicles with electric-/hydraulic and manual convertible







1 - Front seatbelt
2 - Cover
3 - Side trim
4 - Guide
5 - Clip
6 - Clip
7 - Rear seatbelt
8 - Cover
9 - Bolt
- Old version

10 - Nut
- New version
